Application:

ZY series single-stage vacuum transformer oil purifier is mainly used in electric power project, petroleum, chemicalmining, metallurgy, manufacturing and other industries to purify various types of unqualified insulating oil, such as No. 10,No. 25 No. 45 transformer oil, mutual inductor oil, cable oi, switch oil, etc. ZY Oil Purifier adopts Duplex-Stereo fimevaporation technology, which can quickly and effectively remove water, gas and impurities from oil under vacuumnegative pressure, restore and improve the dielectric performance of the insulating oil, and effectively guarantee Powerequipment operates safely. This machine can also be used for different purposes such as vacuum drying, vacuum oilingand hot oil circulation.

Features:

1.Strong ability to remove impurities: ultra-large area cyindrical precision filter element, with high filtration accuracy, easy

installation and replacement.

2.High-efficiency vacuum dehydration and degassing: Duplex-Stereo film evaporation technology .

3.Excellent heating system: carbon fiber electric heater with long service life.

4.Automatic control to realize unattended, safe and stable working.

5.Safety interlock protection: oil pump, vacuum pump, heater interlock protection

6.Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost

7.It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification,deoxidation and removing free carbon and other harmful substances from the oil.

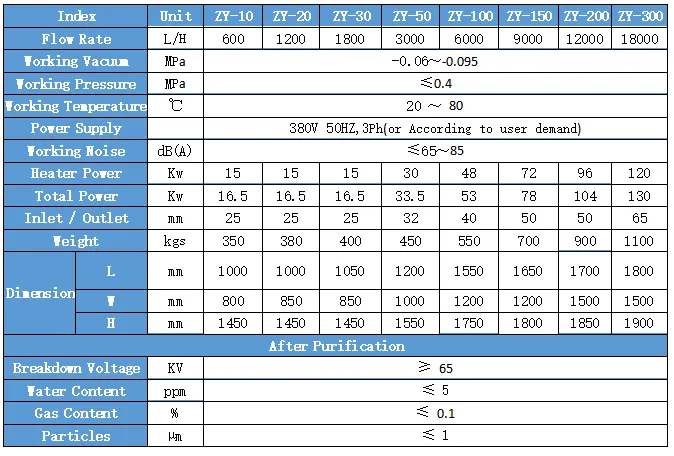

Parameter:
