Application:

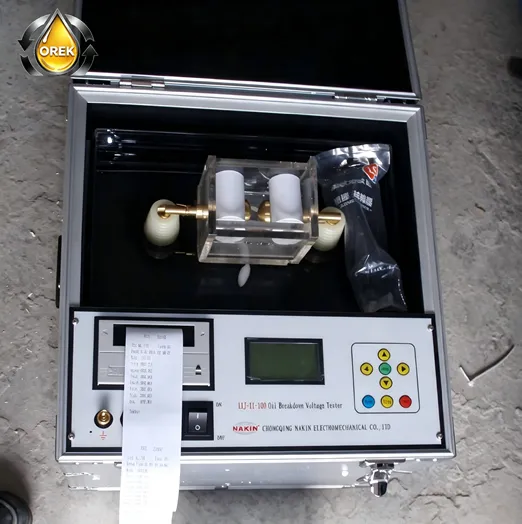

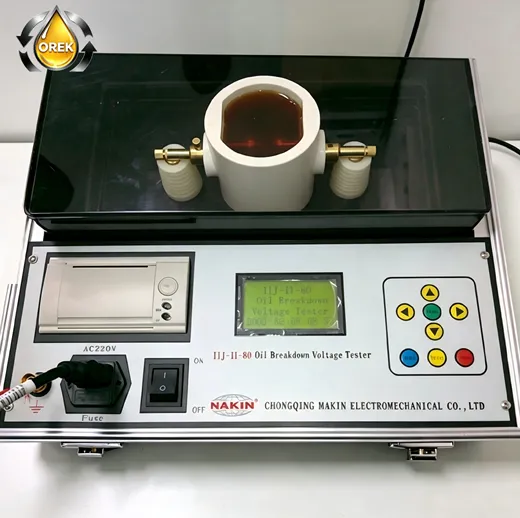

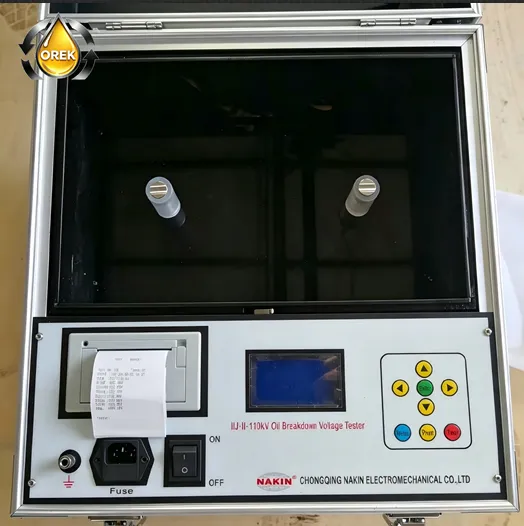

In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. Series IIJ‑II breakdown voltage tester is special for testing insulating oil's dielectric strength. IIJ‑II Automatic oil tester is designed according to international standard of IEC156. Adopts industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti‑jamming technologies which greatly improve the tester’s performance.

Technical Parameters:

1. Power supply: AC220V±10%, 50Hz

2. Output voltage: 0～100KV (80KV、100KV)

3. Capacity: 1.2KVA(1.6KVA、2.0KVA)

4. Speed of pressure rise: about 2KV/S

5. Voltage test precision: ±3%

6. Breakdown sensitivity: <2KV

7. Wave difference: ≤3%

8. Time of breakdown: ≤10ms

9. Working condition: temperature: 0℃～40℃ humidity The biggest comparatively humidity85%

10. Reserve circumstance

Temperature:‑20℃～60℃ humidity The biggest comparatively humidity75%

Working altitude: <1500m (if over 1500m can be designed specially)

11. Dimension: 450mm*460mm*460mm Weight: 40kgs
